Cantilever U Spring vs Cantilever V Spring

Cantilever U vs Cantilever V Springs — Quick verdict: choose U Spring for large-deflection, low-friction dynamic seals with adequate gland depth; choose V Spring where gland height is limited and high preload is required.

Quick Comparison (at a glance)

• U: large deflection, lower friction, smoother load curve, better for long-stroke dynamic use.
• V: compact profile, high initial stiffness, high preload in short stroke, ideal for space-limited glands.
• Both: available in fatigue-resistant alloys (Elgiloy, 17-7PH, Inconel); selection depends on space, stroke, load and media.

Introduction

Cantilever U and V springs are both common energizers for spring-energized seals, yet they behave differently under load and motion. This guide compares their mechanical traits and gives practical selection advice so engineers can match energizer geometry to gland constraints, operating cycles, and environmental demands.

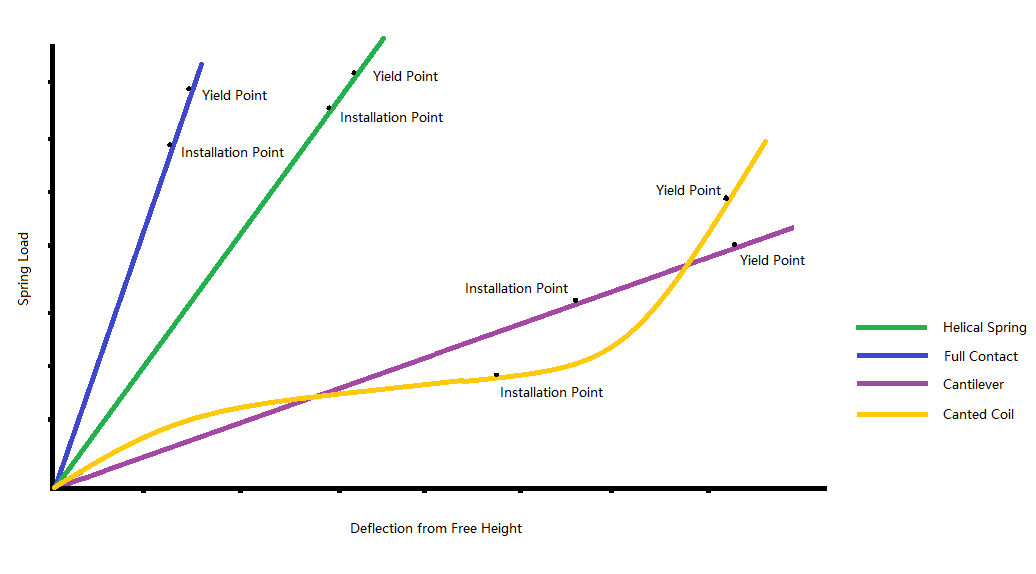

Deflection & Load Behavior

U-profile springs deliver a gentler, more linear force–deflection curve. Because the legs open over a wider range, the load increases moderately with deflection, which reduces abrupt changes in contact pressure. V-profile springs concentrate deflection near the apex, producing a rapid rise to high preload within a short displacement. In short: U = smoother, wider stroke; V = compact, high preload.

Space & Gland Considerations

Gland geometry often dictates the choice. If the seal groove is shallow or the assembly demands minimal axial height, V springs reach required preload within limited space. If the gland allows depth and larger movement is expected, U springs achieve design preload while keeping contact stresses lower.

Friction & Dynamic Performance

U springs typically produce lower friction in reciprocating applications because contact pressure is distributed and travel is smoother—beneficial for high-cycle pistons or actuators. V springs concentrate contact stresses, which can increase friction and wear during sliding; they suit static seals or low-speed rotary applications where preload stability is critical.

Fatigue Life & Material Selection

Fatigue life depends on geometry, forming quality, and alloy. For high-cycle service, specify fatigue-resistant alloys like Elgiloy or MP35N, or properly heat-treated 17-7PH. V springs can last long if designed with adequate radii and stress relief despite local high stresses; U springs working over larger deflection ranges benefit from alloys with excellent springback.

Design & Manufacturing Notes

Optimize leg length, opening angle, and wire diameter to tune preload and deflection. Apply appropriate forming and stress-relief processes to reduce residual stresses. Prototype and run life-cycle tests when cycles or safety margins are critical. Consider surface treatments or low-friction jackets (PTFE/PE) to manage wear.

Selection Guidelines (practical rules-of-thumb)

• Use Cantilever V when gland height is limited and you need high preload in short displacement.
• Use Cantilever U when stroke is large, friction must be minimized, and gland depth permits.
• For corrosive or sour environments, prioritize alloys like Hastelloy, Elgiloy, or MP35N and request NACE compliance.

Final recommendation & CTA

Choosing U vs V is a balance of space, motion, and sealing force. Share your gland dimensions, target preload, operating temperature, and media with Handa Spring — we’ll recommend the optimal spring geometry and material, provide prototypes, and validate performance. Contact Handa Spring for a quick selection consult and quote.
